Q16. Choose the correct answer
In a state machine which behavior can be interrupted by a transition which leaves the current state?

a do behavior

an entry behavior

an exit behavior

the effect of an internal transition

Q17. Choose the correct answer.
Given the following bdd fragment and table showing messages sent between blocks:

Block C Is encapsulated; none of the other blocks are.
Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.
A)

B)

C)

D)

Option A

Option B

Option C

Option D

Q18. Choose the correct answer.

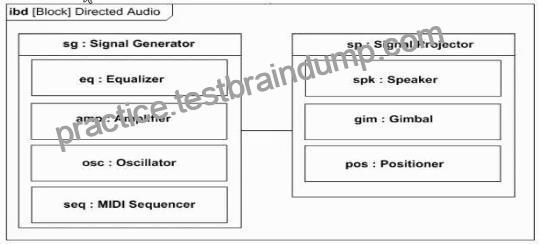

Given a system for keeping birds away from airports One component, described by the following diagram directs audio signals at birds that approach a runway, its parts, as part properties, are typed by blocks.

A systems engineer has identified some blacks that type the pan properties, but as the design becomes more specific, the engineer discovers that these blocks exist in multiple variants.
What modeling choice does the engineer face at this point?

whether to model part properties as (a) a library, or (b) a logical hierarchy

whether to model part properties as (a) a library or (b) a hierarchy of non-composite relationships

whether to model variants of blocks that type part properties as (a) explicit subclasses of the blocks, or (b) part-specific types.

whether to model variants of blocks that type part properties as (a) implicit subclasses of the blocks, or (b) part-specific types

Q19. Choose the correct answer
What is an efficient way to represent highly reused patterns of interaction on sequence diagrams?

an Interaction use referencing an interaction defined on a separate sequence diagram

an interaction template construct that is instantiated from the referring sequence diagram

the call interaction operator with an operand referring to the reusable Interaction defined elsewhere

an activation on the referring sequence diagram allocated to another activation on the referenced diagram

Q20. Choose the correct answer.
Which SysML construct specifies a probability distribution to the values of a property such as a basic interval distribution between min and max?

a range property

an interval property

a probability property

a distributed property

Q21. Choose the correct answer.
Which diagram type is commonly used to create a bill of materials?

Package diagram

Activity diagram

Parametric diagram

Requirements diagram

internal block diagram

Block definition diagram

Q22. Choose the correct answer

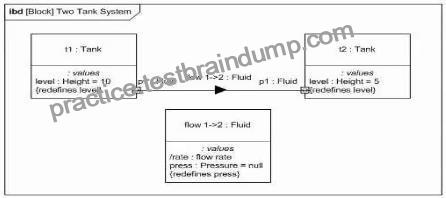

A system consists of two identical tanks each containing a different level of fluid. The tanks are connected together by a port at the bottom of each tank. This system is modeled m the following diagram:

Which statement is true?

The block Fluid, which types item property flow 1 ->2. has a value property press : Pressure with a default value of null

The value property /rate : flow rate is a derived property, which accommodates calculating its value based on oilier properties

Parts t1 and t2 each use part instances to redefine the value of property level : Height

The value of /rate for item property flow 1->2 is positive for flow from t1 to t2. and negative for How in the other direction

Both port p1 on pan t1. and port p1 on t2. must have values defined for value properties /rate and press

Q23. Choose the correct answer.
Given the following diagram:

What is element C?

a tag value

an association block

a connector property

a connector illustration

a relation information element

Q24. Choose the correct answer.
In the following bdd, A delegates both of its ports to B:

Which ibd correctly represents this?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

Q25. Choose the correct answer.
Given the following diagram:

Where should b4 appear In the model hierarchy?

as a part contained by the block B1

as a part contained by the block B3

as a part contained by the block B4

as a part contained by the diagram Nested Parts

Q26. Choose the correct answer

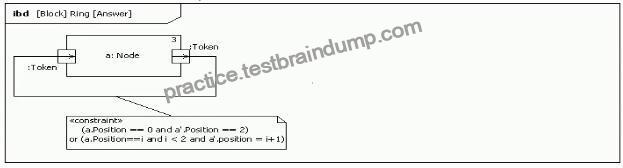

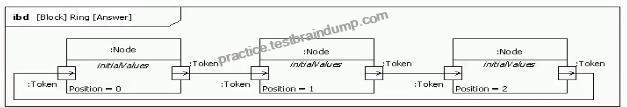

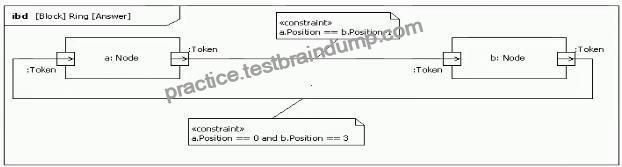

Given the following bdd for a token ring network, in which a token flows from node n to node n+1 except that when it reaches the node at the maximum position n flows to the node at the minimum position.

Which ibd correctly models this behavior?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

Q27. Choose the correct answer

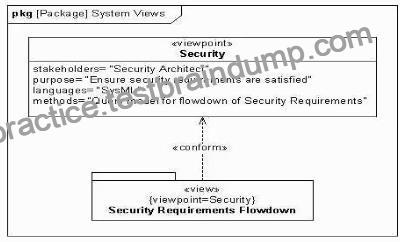

Given the following diagram:

Which statement is true?

The Security viewpoint conforms to the requirements specified by the Security view

The Security view is intended to address the purpose specified by the Security viewpoint

The Security view imports the Security viewpoint to ensure the security requirements are satisfied

The Security viewpoint imports the model elements associated with flowing down the security requirements

Q28. Choose the correct answer.
Which stereotype depicts that an object node will replace existing tokens with newly arriving tokens when the specified upper limit is reached?

No stereotype is needed in this case since it describes the default condition

Q29. Choose the correct answer.

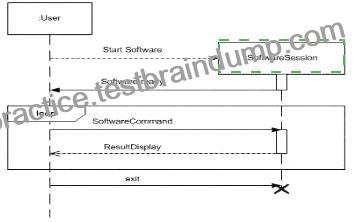

A project has produced the following initial draft sequence diagram fragment:

Q30. Choose the correct answer.
What are the possible values of the enumeration ControlValue?

suspend and resume

enable and disable

suspend, resume, enable and disable

It has no values, but is intended for a modeler to extend with their own control values.

Q31. Choose the correct answer.

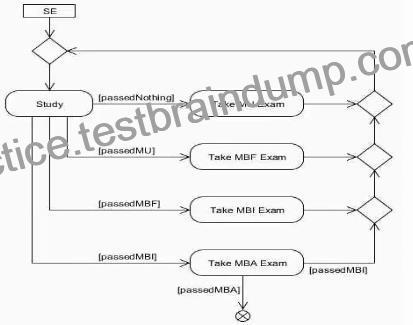

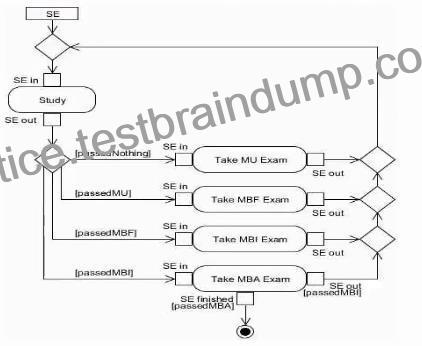

To “show what you know” about SysML a Systems Engineer (SE) must take a total of four examinations in order Model User (MU). Model Bulkier Fundamental (MBF), Model Builder intermediate (MBI> and Model Builder Advanced (MBA). The SE must also study before taking each exam.

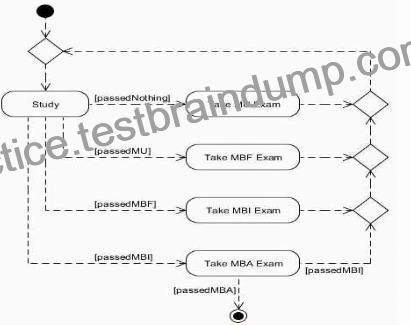

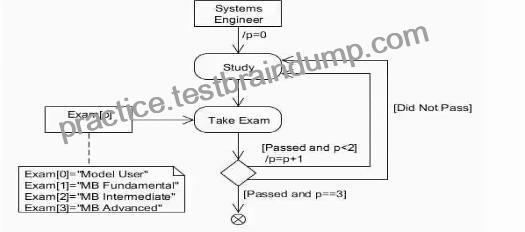

Which activity diagram fragment correctly uses object state constraints to document the process of studying and taking the exams, ensuring that the exams are taken in order of increasing difficulty, and allowing for the possibility that exams may have to be repeated?
A)

B)

C)

D)
